What Is A Forklift Data Plate and How Do I Read It?
Quick Summary:A forklift data plate, also called a capacity plate or nameplate, provides important details about load capacity, weight, fuel type, and operating limits. It helps operators quickly understand the equipment’s specifications and capabilities before use, including model number, lift capacity, and configuration. Reading the data plate correctly supports proper operation, compliance, and efficient material handling.
Taking possession of a brand-new or new-to-you forklift is fun. One of the reasons the people at Toyota are so dedicated to manufacturing and selling forklifts is that they are cool machines. So, I know operators are excited to jump on their new lift and get to work. Not to worry. We want you to enjoy and use your Toyota forklift to get your work done safely and efficiently.
What Information Is on a Forklift Data Plate?
Sometimes referred to as a capacity plate or a forklift nameplate, the forklift data plate includes important information such as weight, fuel type, and forklift load capacity. Associates need to read the data plate during training and before use to help build a culture of safety in your facility.
Relatively quickly, you’ll need to know some quick information about your forklift’s capabilities. Luckily, a forklift data plate is installed on every truck on the market to help you understand what your forklift can do and provide vital information.
There is a variety of information that can be found on a forklift data plate, including the following:
- Model Number: The model number of your Toyota forklift is extremely important for relaying information to your dealers about repair or technical assistance, understanding your lift capacity, and looking up useful information on the Toyotaforklift.com website and shopping for. Theforklift model numbercontains a lot of useful information.
- Serial Number: The serial number on your lift is the most important number available for technician communication. The model serial number combination will allow techs to match parts and understand your machine before they arrive.
- Mast Type:Toyota offers various mast types, including 2-stage, 3-stage, and 4-stage, which vary depending on your specific forklift model and selected specifications.
- Fuel Type:Shows whether the machine is powered by electricity (E), liquid propane (LP), diesel (DS), gasoline (G), or compressed natural gas (CNG).
- Voltage:If you have an electric forklift, the truck's voltage will be displayed here. This is important when charging your battery to ensure it is plugged into the proper charger.
- Back Tilt: This number represents the degrees back the mast can tilt to help keep loads on the forks secure (6 degrees in this example).
- Attachments:This shows you what attachments have been added to the forklift, giving you a clear indication of its capabilities. In the pictured data plate below, we see the side-shifter is in place, meaning the carriage can be shifted left or right.t.
- Front Tread:A forklift's front tread is equivalent to its overall width. It’s like a forklift’s footprint and helps Operations Managers and operators understand the space a forklift will take up in the working environment.
- Tire Size:The tire size and type the truck was designed and built to use. “Solid” indicates a solid pneumatic tire; cushion-type tires will state “Smooth” or “Treaded”. Always replace with the same size and type of tire.
- Truck Weight:The overall weight of the truck. If you have an electric truck, this is the weight of the truck without the battery.
- Forklift Diagram:The forklift diagram offers several data points that are important for understanding the function of your forklift. This can help you understand what your forklift can lift and how it can maneuver in your workspace.
- The horizontal load center
- The vertical load center
- The maximum fork height
- The maximum distance the forks can be offset from the forklift’s centerline
12. Battery AMP-Hour Rating: Indicates how much charge the battery can deliver over a period of time.
13. Battery Weight:The minimum and maximum battery weight are important to understand your overall truck weight.
Warning:Only trained operators who have read and understood the operator’s manual should operate forklifts.
Sit-Down IC & Electric Forklifts Data Plate (3-Wheel, Core Electric, Large Electric, Integrated Electric, IC Pneumatic, IC Cushions, 48/80V El. Pn)
- Model number
- Serial Number
- Mast Type
- Fuel Type
- Voltage
- Back Tilt
- Attachments
- Front Tread
- Tire Size
- Truck Weight
- Forklift Diagram
- Warning
- Battery Type
- Battery AMP-Hour Rating
- Battery Weight

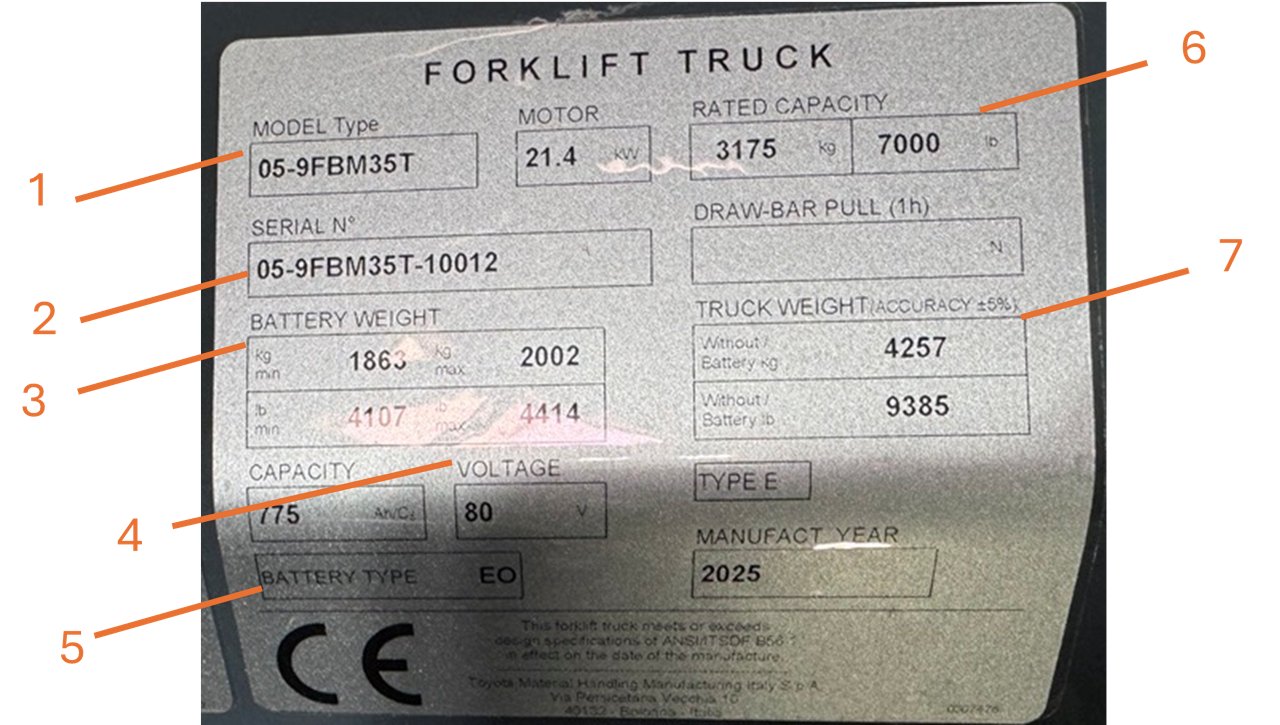

Sit-Down 48/80V Electric Pneumatic Data Plate
1. Model Number
2. Serial Number
3. Battery Weight
4. Battery Voltage
5. Battery Type
6. Truck Capacity
7. Truck Weight (with/without battery)
Order Picker Data Plate
1. Model Number
2. Serial Number
3. Battery Voltage
4. Battery Compartment Width (in/mm)
5. Capacity Tag (lbs/kg & in/mm)
6. Load Center (in/mm)
7. Minimum Battery Weight for Load Center (lbs/kg)
8. Battery Weight Maximum & Minimum (lbs/kg)
9. Battery Max Amp-Hour Rating
10. Truck Weight with and without Battery (lbs/kg)

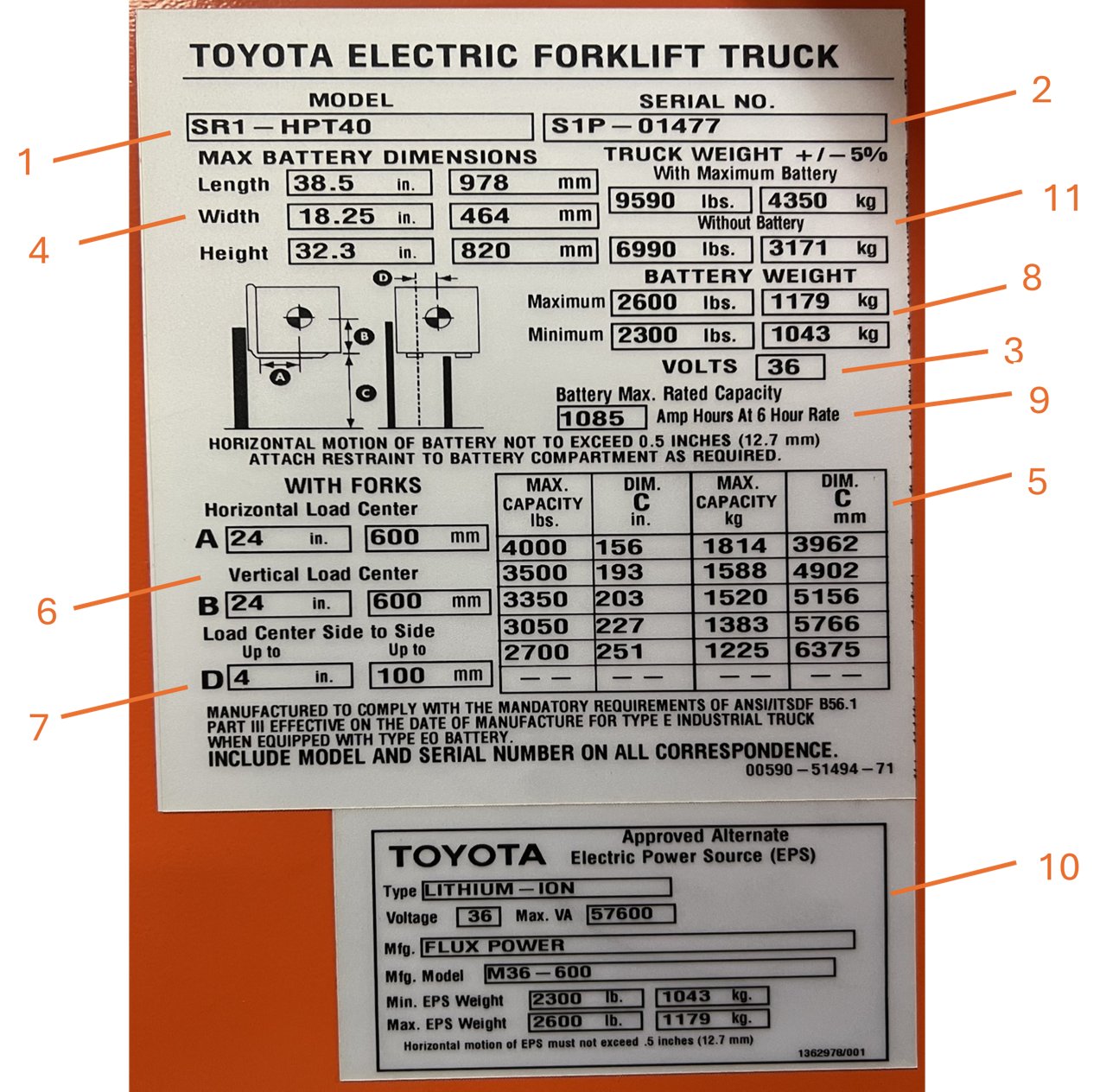

Reach Truck, Stand-Up Rider, Class 3 Stackers Data Plate
1. Model Number
2. Serial Number
3. Battery Voltage
4. Battery Compartment Width (in./mm)
5. Capacity Tag (lbs./kg & in/mm)
6. Load Center (in./mm)
7. Sideshift Tolerance (in./mm)
8. Battery Weight Maximum & Minimum (lbs./kg)
9. Battery Max Amp-Hour Rating
10. UL Sticker
11. Truck Weight with and without Battery (lbs./kg)
Moving Mast Reach Truck Data Plates
1. Serial Number
2. Manufacturing Date
3. Load Center (mm)
4. Max Fork Height (mm)
5. Capacity at each Load Center (kg)
1. Model Number
2. Serial Number
3. Manufacturing Date
4. Rated Truck Capacity (kg)
5. Truck Weight without Battery (kg)
6. Battery Weight (Max/Min) (kg)
7. Battery Voltage

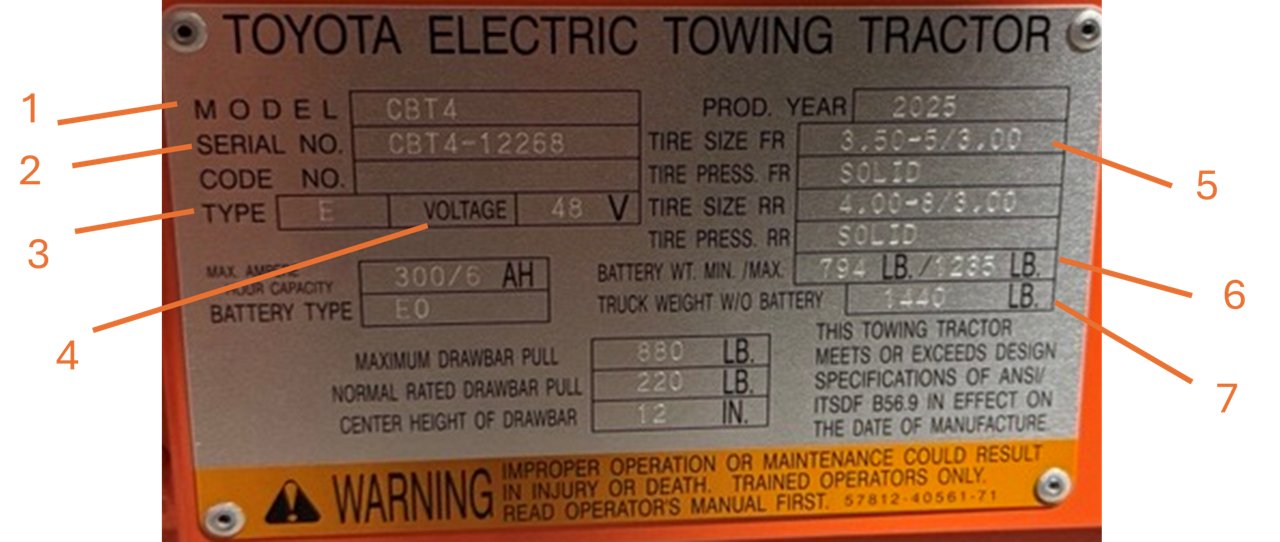

Tow Tractor (Mid & Large) Data Plate
_Data%20Plate?bfc=on&fmt=jpg&qlt=70)
1. Model Number
2. Serial Number
3. Fuel Type
4. Voltage
5. Tire Size/Pressures
6. Battery Weight
7. Truck Weight
Electric Pallet Jack Data Plate
1. Model Number
2. Serial Number
3. Capacity
4. Truck Type
5. Battery Type
6. Battery Weight
7. Voltage

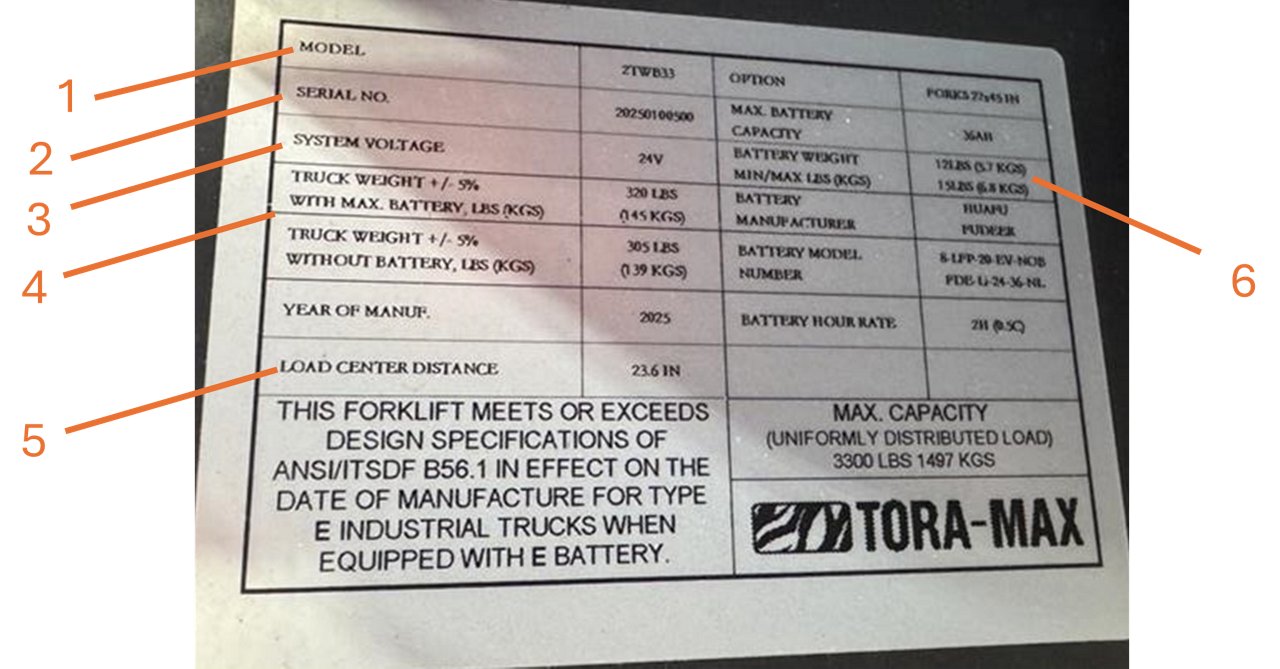

Tora-Max® Data Plate
- Model Number
- Serial Number
- Voltage
- Truck Weight
- Load Center
- Battery Weight
